Low Loss Connector (Churchill pump)



Product Details

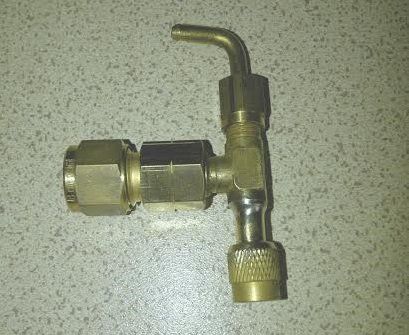

The low loss connector is a self-contained adaptor to connect a pump hose to the car suspension fill valve and couples via a Schrader type fitment. This version has an adaptor to accept the 8mm (5/16”) standard Churchill type nylon tubing and is comlete with nut and olive to suit the Churchill tube.

This unit is constructed so the car refilling valve can be mechanically opened by use of the connectors operating lever. This operates within the sealed hydraulic system thus avoiding loss of fluid during operation of the car suspension valve.

The low-loss connector can be used to open the car valve so the car system can be drained of fluid in the event of a major overhaul, or so the car system pressure can be monitored via suitable external means.


Individually tested to 450 psi (30 bar) on our Hydrolastic/Hydragas suspension test rig.

Low-loss Schrader valve connector with operating lever

Virtually zero fluid loss during use

Supplied adaptor for Churchill tubing. Alternatively we have available a similar unit with adaptor to suit the Liquid Levers type tubing at 6mm OD, please contact us.

With other suitable adaptors can be used on various other manufacturers pumps

Small size to suit the tool box
